Dowel Pins

Dowel Pins

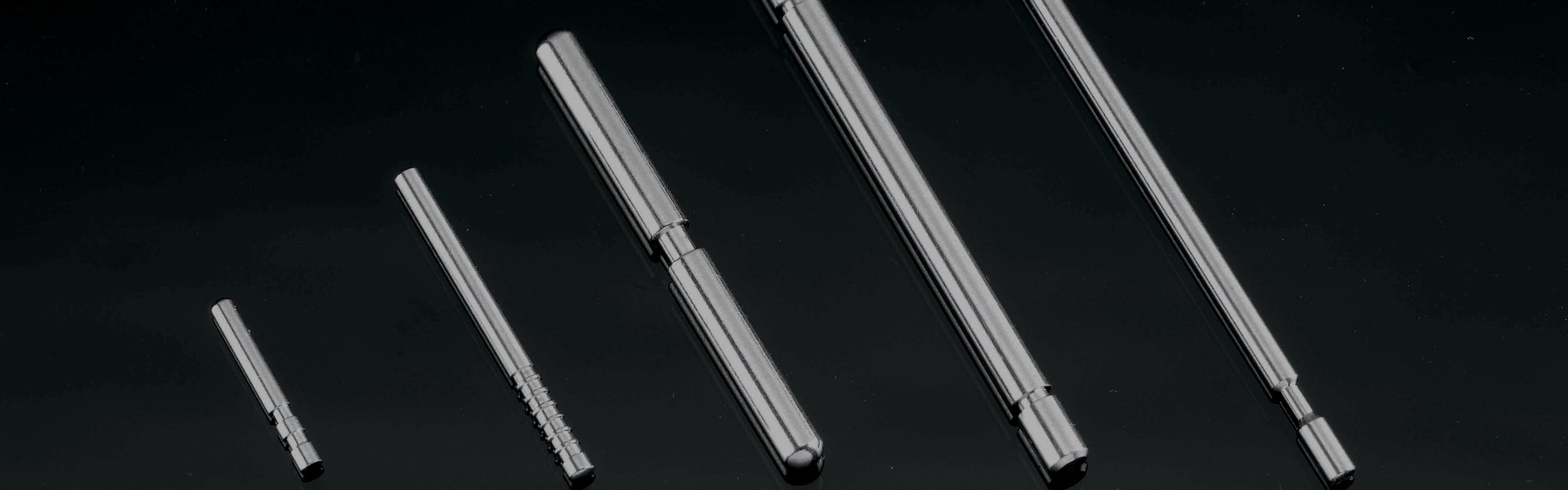

Sunex manufactures,supplier and Exporters of a wide range of Dowel Pins,Cylindrical Pins,Steel Dowel Pins,Taper Pins,Pins,Turned Dowel Pins,Taper Pins made from Silver Steel, C-40 (EN8) as per international standards. CYLINDRICAL PINS: Soft are manufactured to IS: 2393 (DIN-7) for metric series and BS: 1804 for inch series. Material: C-40 (EN-8). We are Dowel Pins Manufacturer and Dowel Pins Suppliers.



CYLINDRICAL PINS: Hardened are manufactured to type IS: 6689 (6325) for metric series and BS: 1804 for inch series, ground to M6 tolerance from Material Silver Steel Hardness 60 +- 2 RC & EN-8/9 to 56 +-4 RC and M.S. to 60 +- 4 RC with 0.8 case depth.



TAPER PINS: Soft are manufactured to IS: 2393:63 (DIN-1) & IS:6688 : 72 for metric series and BS:46 for inch series. Material: C-40 (EN-8).



WE ALSO MANUFACTURE TAPER PINS: Hardened, Grooved Pins (Notch Pins/Mill Pins), Internal & External Threaded Cylindrical & Taper Pins, Prices can be had on request by giving specific information such as sizes, Material Hardness and Quality required.

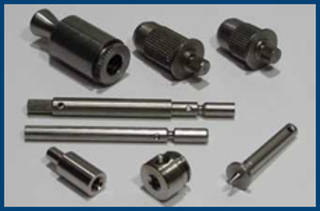

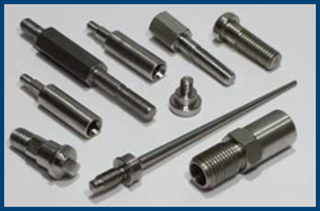

Sample Pictures of CNC Turned Components
